The TSS-95 Trapzilla Solids Separator is a large, yellow, cylindrical interceptor featuring a blue grid-patterned lid, two side pipes, a small round gauge, and a conical bottom; isolated on a white background.
The TSS-95 Trapzilla Solids Separator features a cylindrical design with side inlets and outlets; solids settle at the bottom while cleaner water exits through the upper outlet. Perfect as a super-capacity grease interceptor for restaurant use.

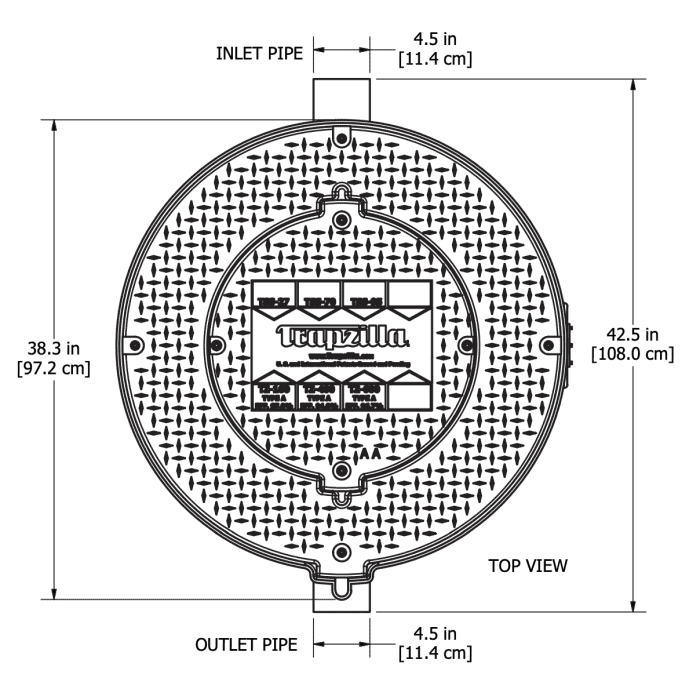

Technical drawing of the TSS-95 Trapzilla Solids Separator, round design, showing top view with measurements: 42.5 in height, 38.3 in width, and 4.5 in diameter inlet/outlet pipes.
Technical line drawing of a TSS-95 Trapzilla Solids Separator cylindrical tank with a 4-inch inlet and outlet labeled in the center ("OUTLET" above). Tank width: 36.0 inches (91.4 cm). "END VIEW" noted at bottom.

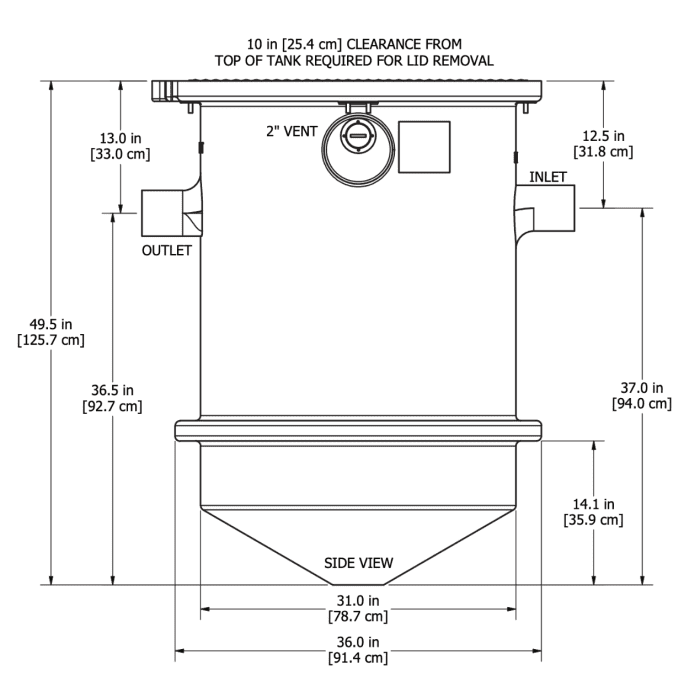

Technical drawing of the TSS-95 Trapzilla Solids Separator displays labeled dimensions, inlet/outlet positions, 2-inch vent, top clearance needed, and side/front views with measurements in inches and centimeters.

TSS-95 Trapzilla Solids Separator

Price range: $2,982.72 through $3,343.60

SKU: N/A Categories: , , ,

Description

Manufacturer Rated Inlet Flow Rate: 150 GPM (9.46 L/s)

Solids Retention Capacity: 95 Gallons (359.61 L)

Material: Rotationally Molded Polyethylene

Thermaco Trapzilla Model No. TSS-95, rotationally molded polyethylene solids separator(s) for in-ground installation, rated at 150 gallons per minute (9.46 L/s) peak flow, 95 gallons (359.61 L) of solids storage capacity, fully removable cover for vacuum access by pump truck for solids removal, and including as an integral part of the unit a vessel vent.

TSS-95-ECA:
Includes one extension collar assembly, linear low-density rotationally molded polyethylene in two pieces for field adjustability to optimal installation depth.

TSS-95-SSA:
Included support stand manufactured out of linear low-density rotationally molded polyethylene.

Additional information

Weight 110 lbs
Dimensions N/A
Model

TSS-95, TSS-95-ECA, TSS-95-SSA
