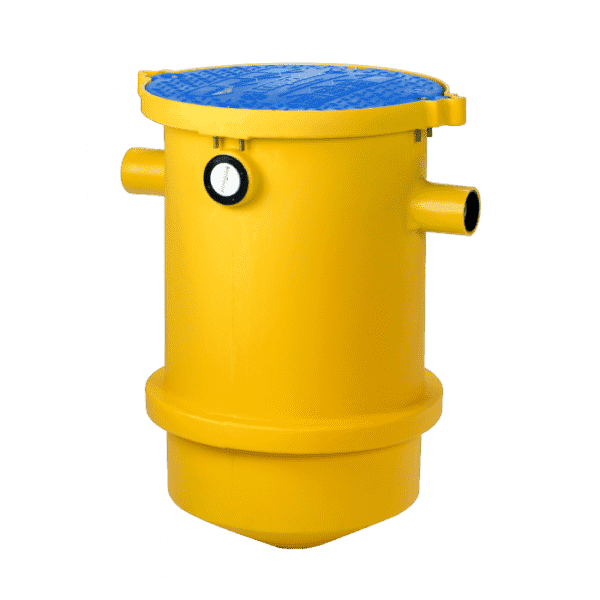

The TSS-27 Trapzilla Solids Separator is a large yellow cylindrical plastic interceptor with a blue lid, two side pipe inlets, an outlet, and a side gauge for industrial or plumbing use. Background is plain white.
Black and white technical diagram of the TSS-27 Trapzilla Solids Separator, circular top view, showing measurements: 26.5 in [67.3 cm] wide, 27.5 in [69.9 cm] tall, with three tabs each 3.5 in [8.9 cm] from the edge.
Technical line drawing of the TSS-27 Trapzilla Solids Separator for restaurants, with labeled inlet, outlet, and 2" vent. Dimensions: 35" tall, 27.5"/27" inlet/outlet height, 10.5" lower section, 22" wide; requires 10” top clearance.
Technical drawing of the TSS-27 Trapzilla Solids Separator, showing a cylindrical component labeled “OUTLET” with 3-inch pipe inlet/outlet and 22-inch (55.9 cm) width. The image is labeled “END VIEW” at the bottom.

TSS-27 Trapzilla Solids Separator

Price range: $1,483.04 through $2,015.52

SKU: N/A Categories: , ,

Description

Manufacturer Rated Inlet Flow Rate: 35 GPM (2.21 L/s)

Solids Retention Capacity: 27 Gallons (102.2 L)

Material: Rotationally Molded Polyethylene

Thermaco Trapzilla Model No. TSS-27, TSS-27-ECA, and TSS-27-SSA rotationally molded polyethylene solids separator(s) for in-ground installation, rated at 35 gallons per minute (2.21 L/s) peak flow, 27 gallons (102.2 L) of solids storage capacity, fully removable cover for vacuum access by pump truck for solids removal, and including as an integral part of the unit a vessel vent.

TSS-27-ECA:
Includes one ECA-TSS-29 extension collar assembly, linear low-density rotationally molded polyethylene in two pieces for field adjustability to optimal installation depth.

TSS-27-SSA:
Included support stand manufactured out of linear low-density rotationally molded polyethylene.

Additional information

Weight 115 lbs
Dimensions N/A
Model

TSS-27, TSS-27-ECA, TSS-27-SSA
