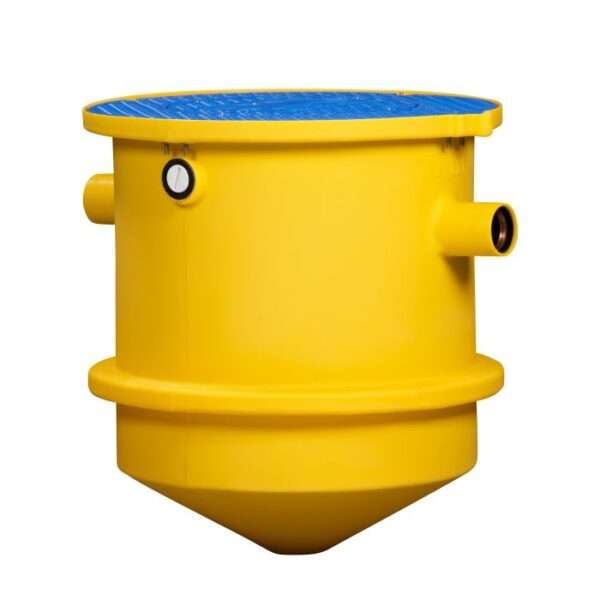

The TSS-70 Trapzilla Solids Separator is a yellow cylindrical industrial container with a blue textured lid, side pipe outlet, capped opening, and cone-shaped bottom—perfect as a high-capacity grease interceptor for restaurants. Shown on white background.

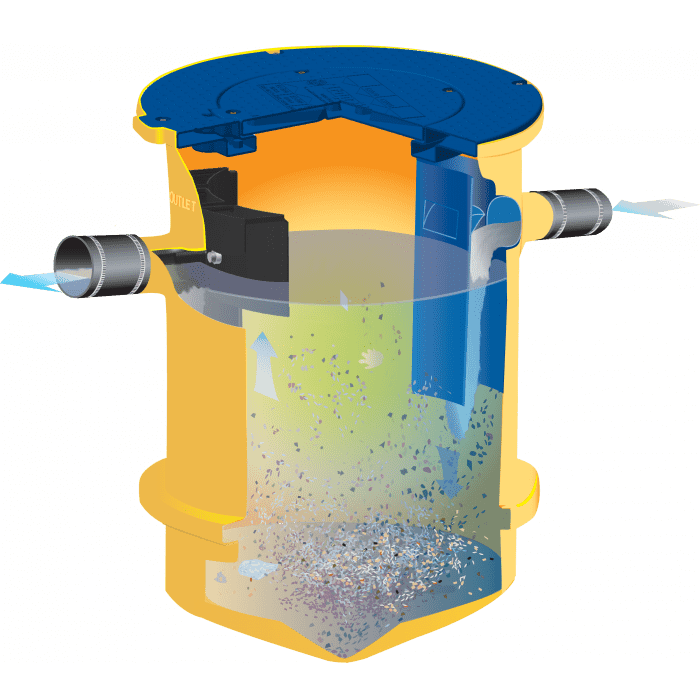

The TSS-95 Trapzilla Solids Separator features a cylindrical design with side inlets and outlets; solids settle at the bottom while cleaner water exits through the upper outlet. Perfect as a super-capacity grease interceptor for restaurant use.

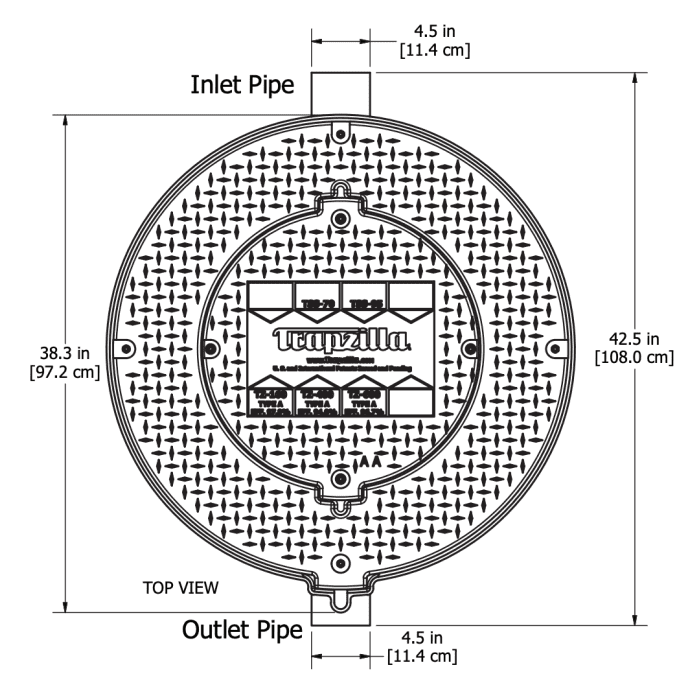

Top view technical diagram of the TSS-70 Trapzilla Solids Separator with 4.5-inch (11.4 cm) inlet/outlet pipes and diameters of 38.3 inches (97.2 cm) and 42.5 inches (108.0 cm).

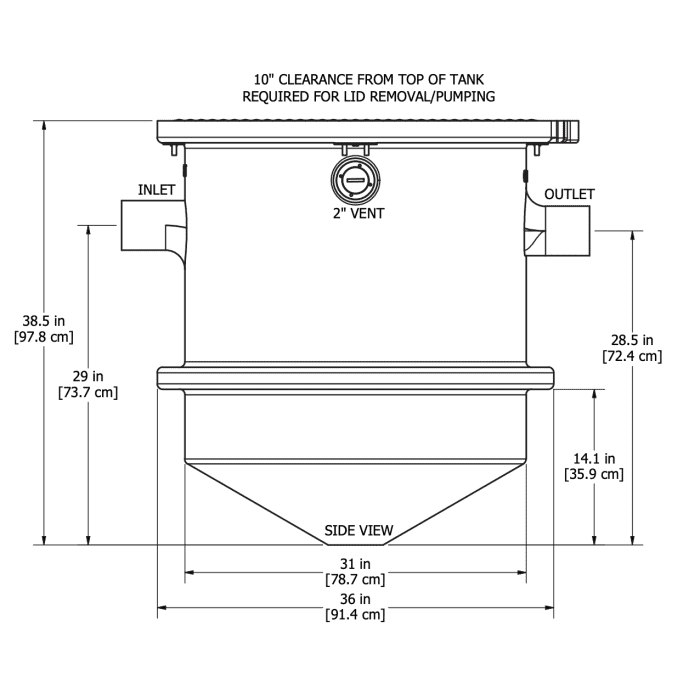

Technical drawing of the TSS-70 Trapzilla Solids Separator, a cylindrical unit with labeled dimensions, 2-inch vent, side inlet/outlet, conical bottom; shows measurements and clearance for restaurant installation.
Black and white technical drawing of the TSS-70 Trapzilla Solids Separator, featuring a 36-inch (91.4 cm) cylindrical tank with labeled 4-inch pipe inlet/outlet on the front; "End view" indicated at the bottom.

TSS-70 Trapzilla Solids Separator

Price range: $2,656.16 through $3,017.04

SKU: N/A Categories: , ,

Description

Manufacturer Rated Inlet Flow Rate: 75 GPM (4.73 l/s)

Solids Retention Capacity: 70 Gallons (265 L)

Material: Rotationally Molded Polyethylene

Thermaco Trapzilla Model No. TSS-70, TSS-70-ECA, and TSS-70-SSA rotationally molded polyethylene solids separator(s) for in-ground installation, rated at 75 gallons per minute (4.73 L/s) peak flow, 70 gallons (265 L) of solids storage capacity, fully removable lid for vacuum access by pump truck for solids removal, and including as an integral part of the unit a vessel vent.

The TSS-70-SSA Includes support stand manufactured out of linear low-density rotationally molded polyethylene.

Additional information

Weight 110 lbs
Dimensions N/A
Model

TSS-70, TSS-70-ECA, TSS-70-SSA
